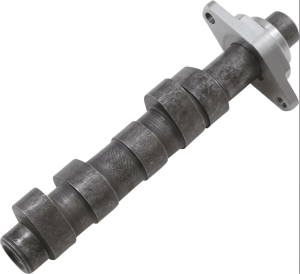

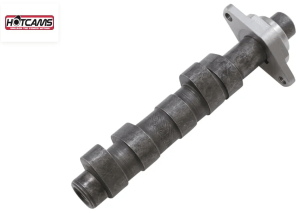

Hot Cams stage 1 camshaft Honda XR600R ’88-’00, XR650L ’93-’21, NX650 ’88-’89
- Designed and dyno proven in the USA
- Mid range and top end power increase. Uses stock valve springs and rockers. Does not use auto-decompression!
- Intake Valve Lash: 0.150 mm. Exhaust Valve Lash: 0.200 mm.
- Engineered by using valvetrain software
- Adds a 5%-10% power gain
- CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
- Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
- Designed for low end torque.
- Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Brand: HOT CAMS
Vendor Part Number: 1004-1
Application: Exhaust, Intake
Exhaust Duration: 258°
Exhaust Lift: 8.80 mm
Intake Duration: 258°
Intake Lift: 8.80 mm
Product Name: Camshaft
Type: Stage 1
Units: Each
